Neodymium Countersunk Magnet

Neodymium Countersunk Magnet

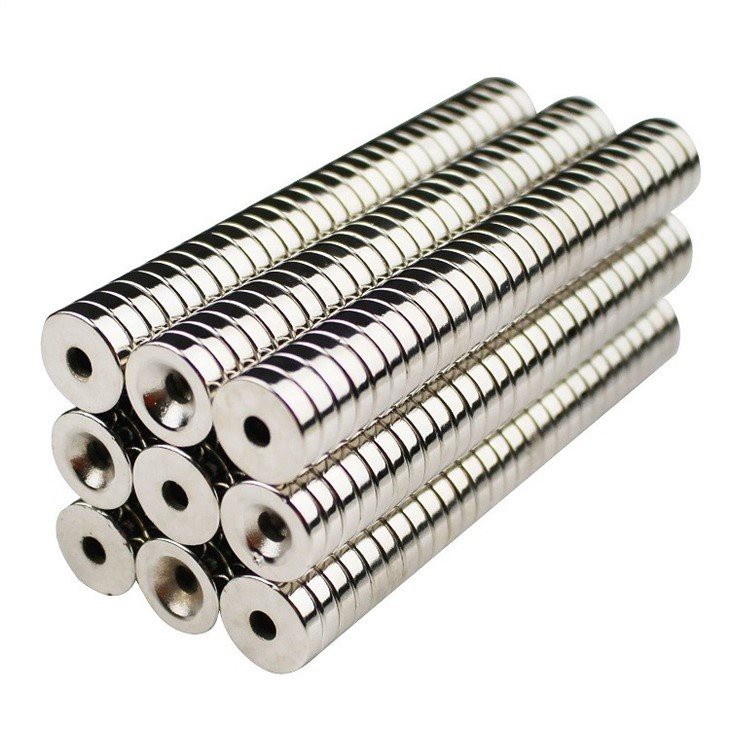

Neodymium hlau nplaum, feem ntau hu ua NdFeB hlau nplaum, yog ib hom kev ua haujlwm siab tsis tshua muaj lub ntiaj teb cov hlau nplaum uas tsim los ntawm cov hlau nplaum ntawm Neodymium, Boron, thiab Hlau. Sintered Neodymium hlau nplaum muaj nyob rau hauv ntau yam duab thiab qhov ntev. Neodymium countersunk hlau nplaum yog ib hom kev ua haujlwm ntawm lub nplhaib hlau nplaum nrog ib qho saum npoo qhia raws li lub nplhaib tus qauv, tab sis lwm qhov kawg nto muaj lub kaum sab xis countersunk qhov. Nws yog ib txwm ntsuas los ntawm sab nraud txoj kab uas hla, los ntawm lub qhov taub, loj txoj kab uas hla, qhov tob, thiab lub kaum sab xis. Lub kaum sab xis feem ntau yog 90 degrees. Nws lub qhov countersunk muab txoj hauv kev yooj yim los txhim kho cov hlau nplaum mus rau ob qho tib si sib nqus thiab tsis sib nqus qhov chaw ruaj ntseg siv cov qauv sib txuam countersunk ntsia hlau. Yuav luag tag nrho ntawm Neodymium countersunk hlau nplaum yog magnetized raws nws axis axis. Tsis tas li ntawd, countersunk qhov tseem muaj nyob rau hauv Neodymium thaiv hlau nplaum thiab Neodymium arc hlau nplaum.

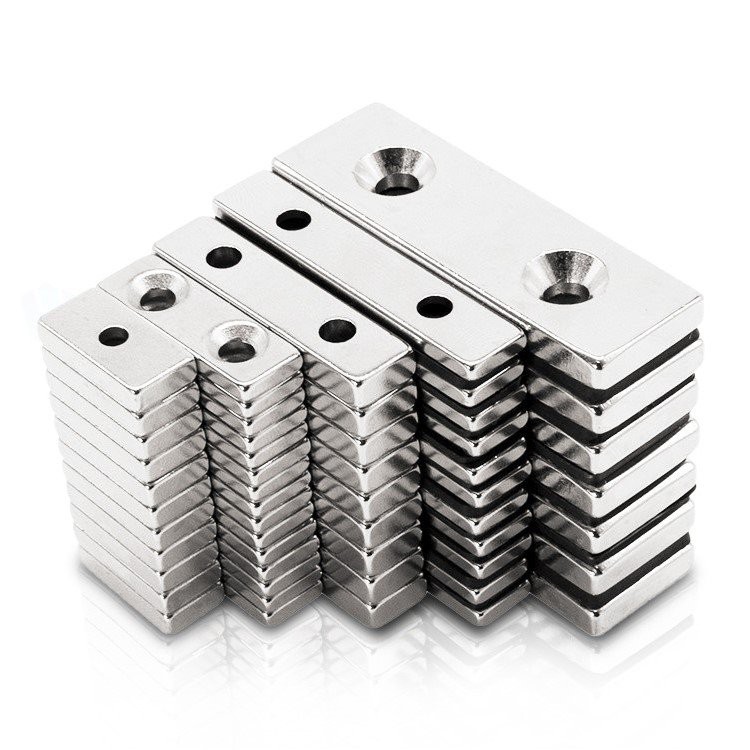

Neodymium countersink hlau nplaum feem ntau yog siv ua ke nrog screws. Cov hlau nplaum Countersink tau muab faib ua ib lub qhov thiab ntau lub qhov, thiab lawv cov duab kuj tseem tuaj yeem muab faib ua cov khoom sib nqus hlau nplaum, square countersink hlau nplaum thiab pobzeb countersink hlau nplaum (los yog hlau nplaum nrog qhov); Feem ntau, qhov loj ntawm counterbore yog sawv cev los ntawm tsab ntawv loj D, d1 sawv cev rau lub cheeb ntawm counterbore, d2 sawv cev rau lub aperture ntawm puab lub qhov, thiab H sawv cev rau lub thickness; Vim li cas counterbores ua? Vim tias nws yog siv ua ke nrog cov ntsia hlau, thaum txhim kho cov ntsia hlau, xav txog kev zoo nkauj thiab kev nyab xeeb, thiab tiv thaiv cov hlau nplaum los ntawm kev puas tsuaj (cov hlau nplaum muaj zog tsis yog hlau, kuj nkig thiab yooj yim tawg), nws yog tsim los rau hauv lub funnel zoo.

Machining txheej txheem ntawm Neodymium Countersunk Magnet

Dhau li ntawm cov khoom loj loj nrog cov duab tsis tu ncua, sintered Neodymium hlau nplaum yog ib qho nyuaj ua kom tiav cov duab thiab qhov ntev ncaj qha vim muaj kev txwv hauv cov txheej txheem magnetic teb orientation molding txheej txheem, yog li ntawd, cov txheej txheem machining ntawm sintered Neodymiummagnet dawb paug yog ib txwm inevitable, tshwj xeeb tshaj yog Neodymium countersunk. hlau nplaum. Raws li ib yam ntawm cov khoom siv tawv thiab nkig cermet, sintered Neodymium hlau nplaum raug thuam los ntawm nws cov machinability, yog li tsuas yog txiav, sib tsoo, thiab drilling tuaj yeem siv rau nws cov txheej txheem machining hauv cov tshuab machining ib txwm. Qhov txheej txheem Machining muaj xws li ob qho tib si los ntawm lub qhov thiab countersunk qhov. Countersunk qhov yuav tsum tau ua tiav ntawm lub hauv paus ntawm throughhole. Txhawm rau kom ntseeg tau tias qhov sib txawv ntawm qhov sib txawv ntawm lub qhov thiab lub qhov countersunk, workpiece yuav tsum tau kho kom raug thaum lub sij hawm machining txheej txheem ntawm lub qhov countersunk.

Hom muaj dimention thiab qib ntawm Hongyu Magnetic Countersunk
