5G Circulator Magnet

Taw qhiantawm5G Circulator Magnet

5G tau nyiam ntau yam vim nws daim ntawv thov kev cia siab hauv tsheb sib txuas thiab kev lag luam IOT, thaum kev lag luam kev lag luam ntawm Tuam Tshoj thiab Tebchaws Meskas kuj txhawb qhov kub thiab txias. Qhov tseeb, 5G kuj tau ua rau muaj kev kub ntxhov vim qhov loj ntawm 5G circulator hlau nplaum. Raws li ib feem tseem ceeb ntawm xov tooj cua zaus subsystem, circulators tau dav siv nyob rau hauv yoj lim, duplexer thiab reflection amplifier ntawm 2G ~ 4G wireless base chaw nres tsheb. 5G muaj ntau dua qhov yuav tsum tau muaj peev xwm network piv nrog 4G, thiab Massive MIMO Technology yog ib qho ntawm cov thev naus laus zis tseem ceeb los txhim kho lub peev xwm network. Txhawm rau txhawb nqa Massive MIMO Technology, kav hlau txais xov channel ntawm 5G nce mus rau 64-channel los ntawm 4-channel thiab 8-channel hauv 4G. Kev noj cov khoom siv xov tooj cua zaus tau nce los ntawm ob peb zaug nrog kev nce ntxiv. Tsis tas li ntawd, ntau lub hauv paus chaw nres tsheb ceev dua 4G vim kev txhim kho ntawm kev ua haujlwm band. Yog li ntawd, kev noj cov circulator thiab cuam tshuam 5G circulator yuav nce sharply.

Circulator yog dab tsi?

Circulator yog lub xov tooj cua zaus passive ntaus ntawv hauv kev sib txuas lus hauv xov tooj ntawm tes uas tso cai rau microwave lossis xov tooj cua zaus teeb liab xa mus rau hauv lub nplhaib unidirectional. Cov yam ntxwv ntawm ib txoj kev kis tau tus mob yog raws li gyromagnetic khoom ntawm gyromagnetic ferrite. Gyromagnetic ferrite yog ib yam khoom ferrite uas lub dav hlau polarization tas li rotates nyob ib ncig ntawm cov kev taw qhia kis tau tus mob thaum lub dav hlau polarized electromagnetic yoj mus los ntawm ferrite nyob rau hauv ib qho kev taw qhia nyob rau hauv high zaus magnetic teb. Cov yam ntxwv ntawm ib txoj kev kis tau tus mob feem ntau yog ua haujlwm rau kev sib cais ntawm theem thiab theem lossis nruab nrab ntawm qib thiab cov khoom siv xov tooj cua zaus kom ua haujlwm ntawm nws tus kheej, yog li ntawd, tiv thaiv qhov chaw teeb liab thiab txo qis zaus rub, cuam tshuam lossis tsis tsim hluav taws xob uas yuav ua kom zoo dua qub. zoo.

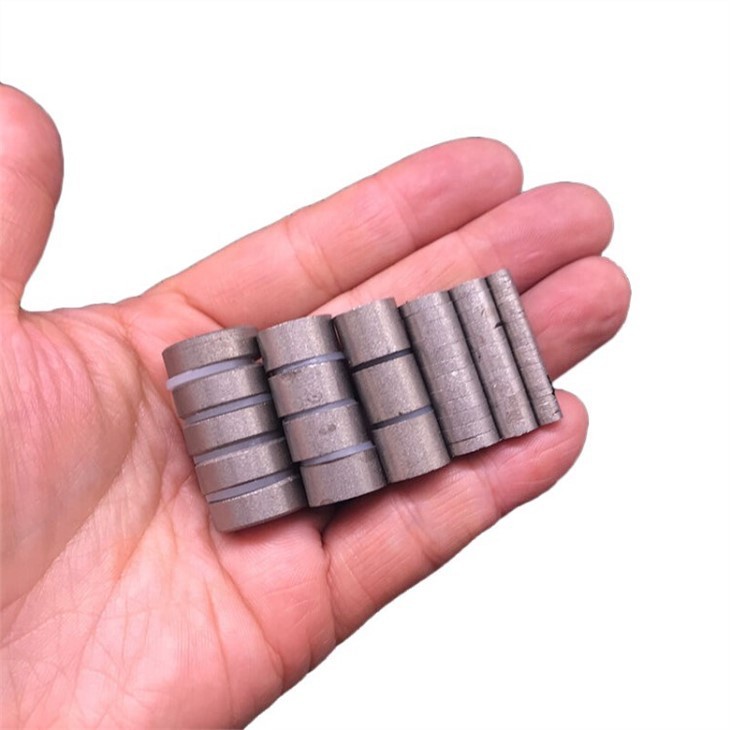

Hais txog 5G Circulator Magnet

Cov hlau nplaum tas mus li yog cov khoom tseem ceeb uas siv cov hlau nplaum ncaj qha tam sim no mus rau gyromagnetic ferrite, thiab cuam tshuam ncaj qha rau kev ua haujlwm band, qhov kub thiab txias thiab lwm yam tsis zoo ntawm circulator. Ob leeg ferrite thiab Samarium Cobalt hlau nplaum tuaj yeem ua cov hlau nplaum circulator. Cov hlau nplaum ferrite tuaj yeem tawm hauv nruab nrab thiab kev ua haujlwm ntawm lub tshuab ua haujlwm tsis ruaj khov, nyob rau lub sijhawm no, ferrite kuj tsis tuaj yeem ua tiav qhov kev thov me me ntawm 5G circulator. Hauv qhov no, Sm₂Co₁₇Cov hlau nplaum raug xaiv raws li 5G circulator hlau nplaum txawm tsis muaj tus nqi kom zoo dua. Nrog rau kev tsim kho ntawm 5G hauv paus chaw nres tsheb, qhov kev thov rau Sm₂Co₁₇5G circulator hlau nplaum tau ntsib kev loj hlob tawg.
